Triax Series

Greater Bandwidth, Lower Interference

These durable, high-reliability connectors and cable assemblies are part of the proven KingsWin™ portfolio from Winchester, delivering greater bandwidth and less interference than conventional coaxial technology.

Reliable Performance In Harsh Environments

The Triax Series is ideally suited for a wide range of challenging applications including commercial and military aircra, missile systems, and broadcast and medical systems.

Customized for Unique Requirements

Triax TRB connectors have a BNC-type interface and are available in a 2, 3, or 4 stud bayonet coupling. Triax TRT connectors feature a threaded coupling and TNC-like interface. Custom triaxial designs are also available to handle unique requirements in mounting congurations, coupling styles and frequency ranges.

Triax cable connectors by Winchester Interconnect

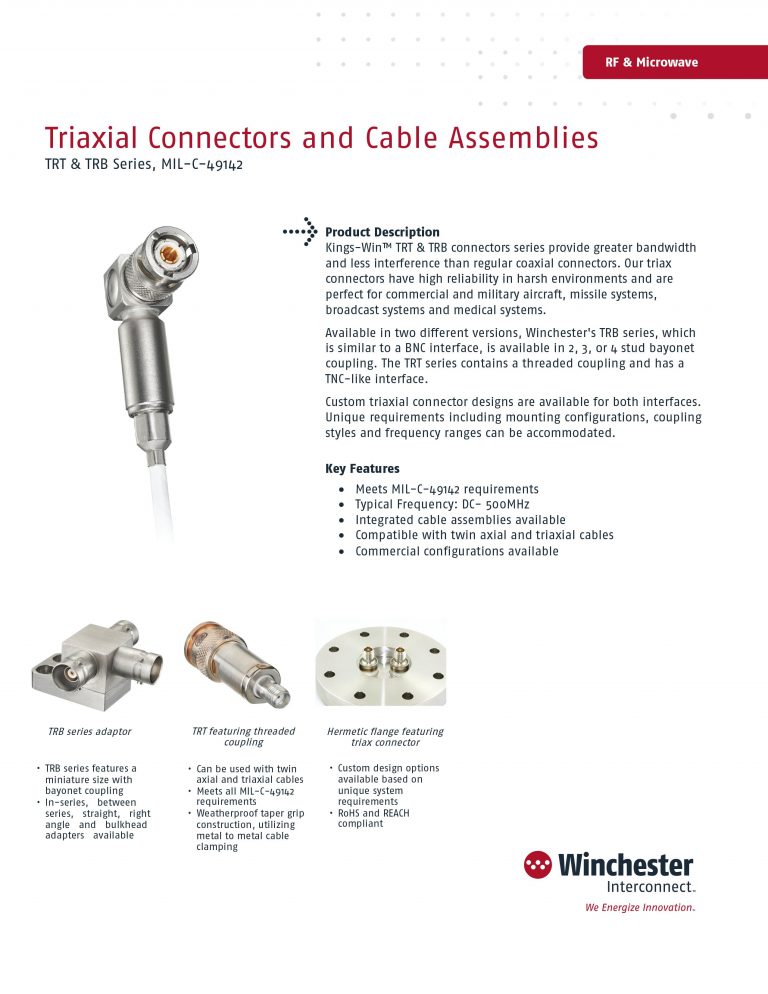

Triaxial Connectors Cable Assembly spec sheets by Winchester Interconnect

Key Features

  • Meets MIL-C-49142 requirements
  • Typical Frequency: DC- 500MHz
  • Integrated cable assemblies available
  • Compatible with twin axial and triaxial cables
  • Commercial configurations available

Technical Specifications

  • Impedance: 50–75 Ohms
  • Frequency: DC–500MHz
  • Temperature Range: -65° C to +165° C
  • Body Materials: Brass Alloy
  • Contact Materials: Beryllium Copper/ Brass Alloy
  • Insulator: PTFE
  • Mil Std. MIL-STD-1344
  • Durability: 500 Cycles
