SMP Series

Blind-mate, Snap-in, & Vibration-resistant

The SMP Connectors feature a blind-mate, snap-in, vibration-resistant connection. These connectors are quick-connect/quick-disconnect connectors that are easy to mate and un-mate in small spaces, and designed to accommodate a large variety of flexible and semi-rigid cables.

Reliable Performance In Harsh Environments

The compact size allows for high density applications and, combined with the withdrawal features of the full detent design, the SMP series has become a standard for quick and effective interconnects using semi-rigid cable to printed circuit boards

Customized for Unique Requirements

Our experienced engineering team is accustomed to collaborating with customers on solutions with unique requirements.

Non magnetic connectors made by Winchester Interconnect

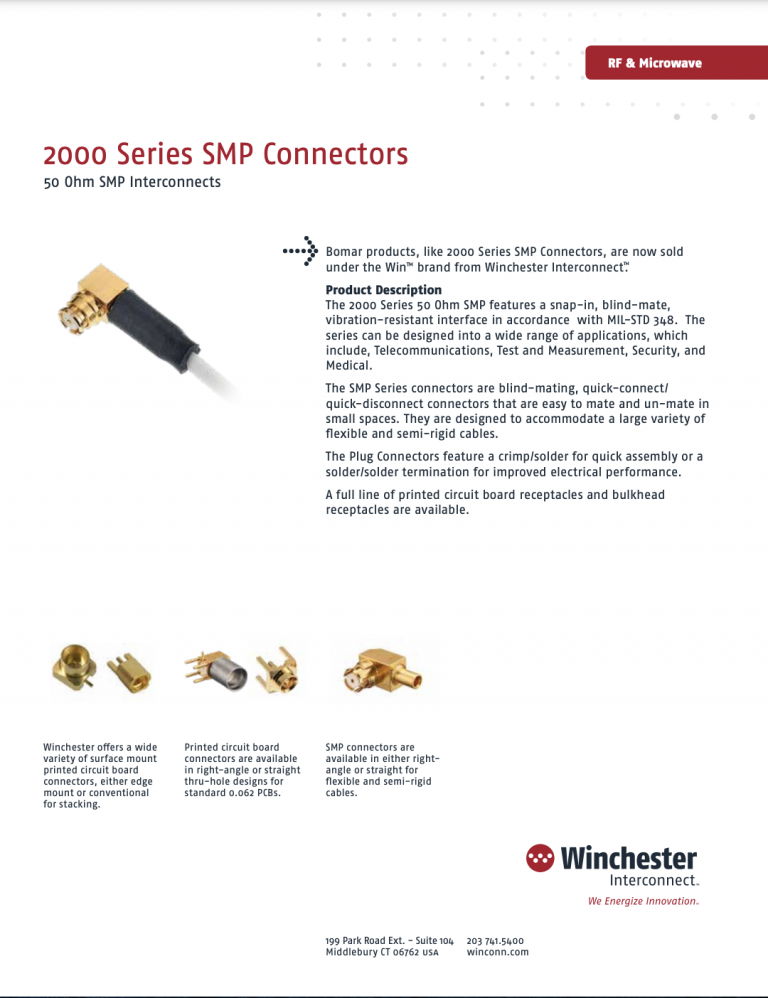

2000 series SMP cable connectors by Winchester Interconnect

Key Features

  • Available in right angle or straight
  • Designed for a variety of flexible and semi-rigid cables
  • Crimp/solder for quick assembly or a solder/solder termination for improved electrical performance
  • Snap-in, blind-mate, vibration-resistant interface in accordance with MIL-STD-348
  • Push-on design allows the installer to mate connectors without the need for any tooling

Technical Specifications

  • Impedance: 50 Ohms
  • Frequency: DC to 40 GHz
  • VSWR: 1.20 Max to 18 GHz / 1.35 Max 18 to 26.5 GHz / 1.70 Max 26.5 to 40 GHz
  • Temperature Range: -65˚C to +165˚C
  • Body Materials: Brass/Black Nickel Plated  / Brass per ASTM B16
  • Contact Materials: Male Contact Brass/Gold Plated  / Female Contact Phosphor Bronze/ BECU Gold
  • Insulator: PTFE
  • Mil Std: Corrosion Resistance MIL-STD-202 Method 101, Cond B / Vibration MIL-STD-202 Method 204, Cond D / Shock MIL-STD-202, Method 107, Cond B (except high temp to be +165˚C or max high temp of cable)
  • Durability: Full Detent 100 Cycles / Limited Detent 500 Cycles / Smooth Bore 1000 Cycles
