SC Series

The Best Brands in One Place

Kings Electronics products, like the SC Series Connector is now sold under the Kings-Win™ brand from Winchester Interconnect™.

Reliable Performance In Harsh Environments

Used in a variety of applications, the SC connector is available in Commercial and Military-specified versions. The durable and weatherproof features make Winchester’s SC connecter reliable in any environment.

Standard and Custom Configurations

If you have a specific part number you’re interested in, use our distributor inventory search to see what is available today, or contact us for custom designs.

SC cable connectors by Winchester Interconnect

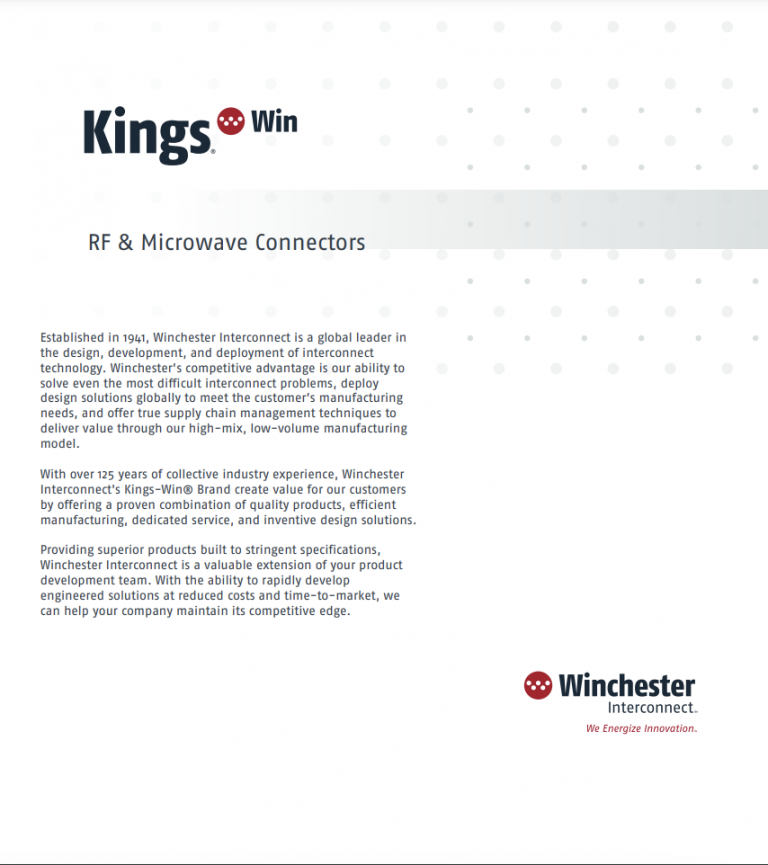

Winchester Interconnect Kings series - RF and Microwave high voltage connector series

Key Features

  • Threaded version of the C Series connector
  • Durable and weatherproof – ideal for harsh environments
  • Keyed versions available to prevent mismatching and misalignment in critical applications

Technical Specifications

  • Impedance: 50 Ohms
  • Frequency: DC to 11 GHz
  • VSWR: 1.30 Max, DC to 11 GHz
  • Insertion Loss: .15 dB Max at 9 GHz
  • Temperature Range: -65˚C to +165˚C
  • Body Materials: Brass
  • Contact Materials: Brass, Beryllium Copper
  • Insulator: PTFE
  • Mil Std: Corrosion Resistance MIL-STD-202, Method 101, Cond B / Vibration MIL-STD-202, Method 204, Cond B / Shock MIL-STD-202, Method 213, Cond A
  • Durability: 500 Cycles
