HN Series

High Voltage Type N

Winchester’s high-voltage version of a Type-N.

Reliable Performance In Harsh Environments

Overlapping insulation in the interface provides weatherproof features to ensure repeatability, reliability, and excellent electrical-mechanical performance in any environment.

Standard and Custom Configurations

If you have a specific part number you’re interested in, use our distributor inventory search to see what is available today, or contact us for custom designs.

HN series cable connectors by Winchester Interconnect
Kings-Win Catalog for RF and Connectors by Winchester Interconnect

Key Features

  • High-voltage version of the Type N
    connector.

Technical Specifications

  • Impedance: 50 Ohms
  • Frequency: DC – 4 GHz
  • VSWR: 1.35:1 MAX
  • Insertion Loss: .03*√f(GHz) dB  – STR, .05*√f(GHz) dB – R/A
  • Voltage Rating: 1500 VRMS (Operating)
  • Insulation Resistance: 5000 Megohms
  • Temperature Range: -65° to +165°C
  • Body Materials: Brass, Nickel Plated or Silver Plated
  • Contact Materials: Brass, Beryllium Copper, Gold Plated or Silver Plated
  • Insulator: PTFE
  • Mil Std: Interface per MIL-STD-348 Fig. 317-1 (Male) & 317-2 (Female)
  • Durability: 500 Cycles, Min.
1mm RF Assembly by Winchester Interconnect

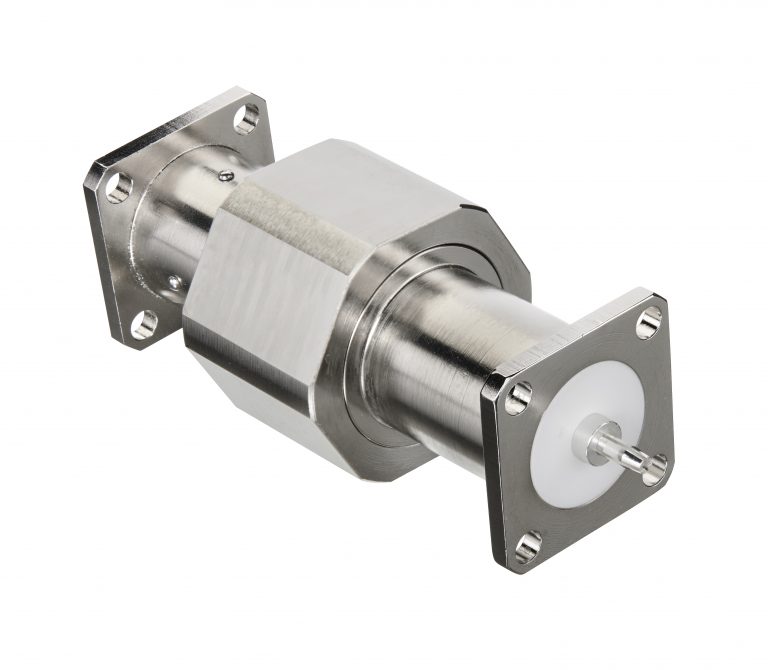

LT series cable connectors by Winchester Interconnect
