Combination D-Sub Series

Home » Connectors » RF and Microwave Connectors » Combination D-Sub

Signal, Power, and RF Combined

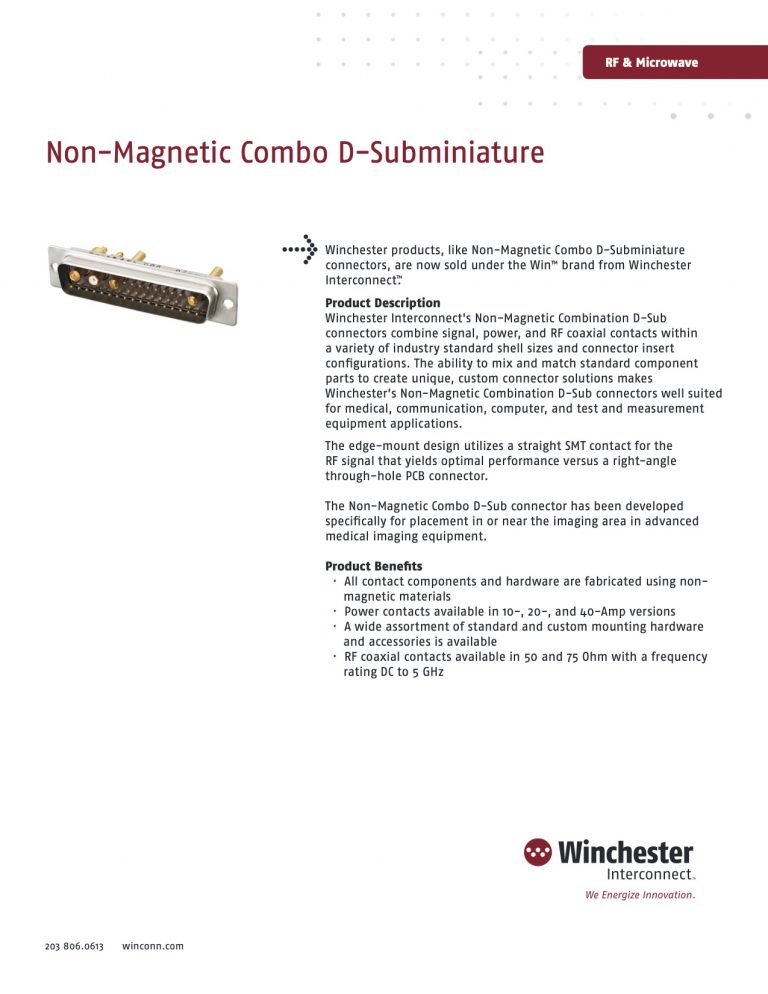

Winchester Interconnect’s Non-Magnetic Combination D-Sub connectors combine signal, power, and RF coaxial contacts within a variety of industry standard shell sizes and connector insert configurations.

Reliable Performance In Critical Environments

The ability to mix and match standard component parts to create unique, custom connector solutions makes Winchester’s Non-Magnetic Combination D-Sub connectors well suited for medical, communication, computer, and test and measurement equipment applications.

Standard and Custom Configurations

If you have a specific part number you’re interested in, use our distributor inventory search to see what is available today, or contact us for custom designs.

Key Features

Contact components and hardware can be fabricated using non- magnetic materials
Power contacts available in 10-, 20-, and 40-Amp versions
A wide assortment of standard and custom mounting hardware and accessories is available
RF coaxial contacts available in 50 and 75 Ohm with a frequency rating DC to 5 GHz
Developed specifically for placement in or near the imaging area in advanced medical imaging equipment.

Technical Specifications

Frequency: DC to 5 GHz
Temperature Range: -55˚ to +155˚ Celsius
Body Materials: Shells Copper Alloy
Contact Materials: Copper Alloy
Insulator: Glass Filled Polyester UL94V-0
Durability: 500 Cycles Min.
