BNC Series

The Best Brands In One Place

Continental Connector and Bomar products, like the BNC Connectors and Cable Plugs, are now sold under the Winchester™ brand from Winchester Interconnect™.

Reliable Performance In Harsh Environments

V-Bite® Edge-Mount BNC PCB Connectors feature a unique and patented design which provides ease of assembly, outstanding RF performance, and superior mechanical strain relief.

Standard and Custom Configurations

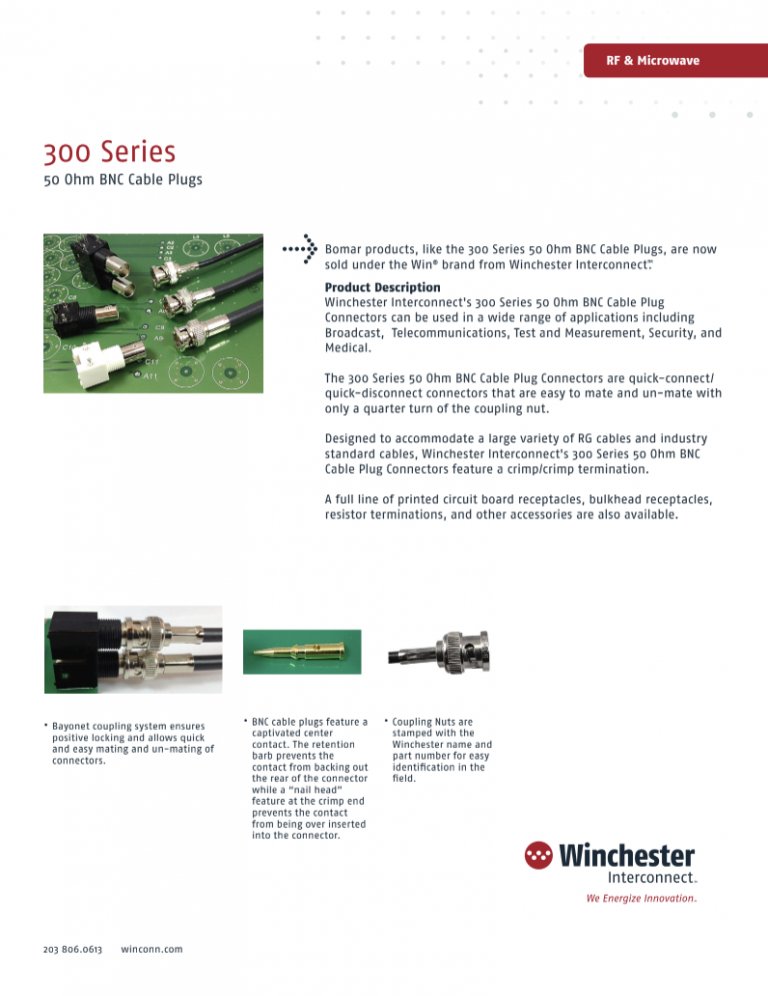

The 300 Series 50 Ohm BNC Cable Plug Connectors are quick-connect/quick-disconnect connectors that are easy to mate and un-mate with only a quarter turn of the coupling nut. WVB Series 75 Ohm BNC PCB Jacks are available in a variety of Vertical, Right-Angle, and Edge Mount designs for solder termination to printed circuit boards. If you have a specific part number you’re interested in, use our distributor inventory search to see what is available today

BNC series cable connectors by Winchester Interconnect
300 BNC cable connectors by Winchester Interconnect

Key Features

  • V-Bite® BNC Connectors customizations
  • 300 Series 50 Ohm BNC Cable Plug Connectors are quick-connect/quick-disconnect connectors that are easy to mate and un-mate
  • WVB Series 75 Ohm BNC PCB Jacks mate with our industry-proven Kings-Win 2065 Series Standard BNC and 2065 Series Long Barrel BNC Plugs
  • Dual BNC Right-Angle Connectors feature two “vertically stacked” BNC Jack Connectors and consume 50% less PCB real estate as compared to two right-angle connectors mounted side by side

Technical Specifications

  • Impedance: 50 Ohm or 75 Ohm
  • Frequency: 0 – 4 GHz
  • VSWR: Straight: 1.15 Max Right Angle: 1.2 Max
  • Insertion Loss: 0.2dB Max
  • Temperature Range: -65˚ to +165˚ Celsius
  • Body Materials: Brass Nickel Plated/ Gold
  • Contact Materials: Female Contact – Phosphor Bronze/Gold Plated / Male Contact – Brass, Gold Plated
  • Insulator: Polyethylene or PTFE or Polypropylene
  • Mil Std: Interface per MIL-STD-348 Figs. 301-1 & 301-2
  • Durability: 500 Cycles Min
