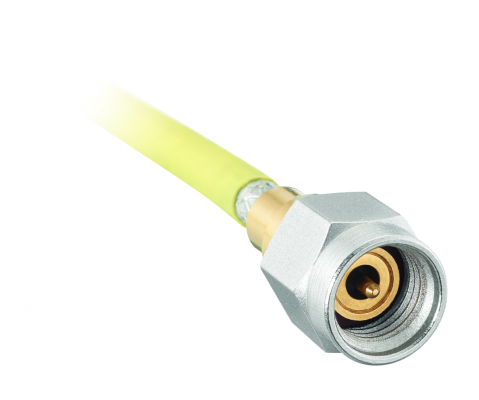

2.9mm Series

Home » Connectors » RF and Microwave Connectors » 2.9mm Series

Part of Winchester's MVP (Moisture Vibration Proof) Line

MVP prevailing torque has a proven 1-5 oz-in friction mechanism that is
simple and effective, eliminating the need for lock wires.

Reliable Performance In Harsh Environments

The 2.9mm is ideally suited for a wide range of challenging applications. Winchester’s threaded RF 2.9mm connectors provides a reliable interconnect in the most demanding vibration and moisture environments.

A Variety of Configurations

The 2.9mm comes in a variety of standard configurations, including bulkhead, 4-hole flange mount, solder clamp, and direct solder. Custom Configurations also available.

Key Features

Moisture ingress IP68 rated
Clamp cable seal assembly seals to the cable jacket
Coupling nuts feature a prevailing torque of 1-5 oz-in to prevent free spinning, eliminating catastrophic failure and need for lock wires

Technical Specifications

Impedance: 50 Ohms
Frequency: DC – 40 GHz
VSWR: 1.25:1 Max
Insertion Loss: .03*√f(GHz) dB – STR, .05*√f(GHz) dB – R/A
RF Leakage: >100 dB
Temperature Range: -55˚ to +135˚ Celsius
Body Materials: Stainless Steel, Passivated or Brass, Gold Plated or Silver Plated or Nickel Plated
Contact Materials: Beryllium/Brass Gold Plated
Insulator: PTFE/PPO
Mil Std: Interface: MIL-STD-348 Figs.
Durability: 500 Cycles Min
