EP Series

Cadillac-Win®

Cadillac-Win® Brand EP Series is ATEX/IECEx certified for use in hazardous environments.

When Failure is not an Option

Classified facilities such as petrochemical refineries, land, and offshore drilling systems are just a few of the applications for this product series. The EP Series can be purchased as a standalone connector or with cable.

Explosion Proof Series

Used in the Industrial and Marine, Oil and Gas markets, the EP Series is an outgrowth and variant of the CN Series offering increased performance and explosion protection in hazardous environments. Clements has certified this connector series for use in a Zone 1, Gas IIC and Dust 21 environments with IP68 environmental sealing characteristics and T6 temperature class.

EP series cable connectors by Winchester Interconnect
Ruggedized MOG Thumbnail Winchester Interconnect

Key Features

  • Hazardous area, environmental connector rated IP68
  • Globally recognized for use in explosive atmospheres
  • Designed for the roughest industrial applications
  • Large coupling sleeve, secured with captive set screws
  • Strong machined aluminum construction
  • Secure single lead threaded coupling system
  • Durable, Scratch resistant black Hardcoat Plating
  • Vast family of reversible inserts, for power, signal and mixed applications
  • Consult factory for other shell sizes
  • Extensive array of hardware & strain relief options
  • Custom cable assembly manufacture to support customer application specific designs
  • Silver or gold contacts are available.
  • Stainless steel and brass components are available upon request.
  •

Technical Specifications

  • UL & CSA Certification (consult our web site for latest product certifications)
  • From 1 to 68 contact positions
  • Contact sizes for 18, 16, 12, 10, 8, 4, 1/0, 4/0, 313 to 777 MCM AWG
  • Shell sizes 6, 8, 10, 12, 14.
  • Operating temperature: -20°C to +40°C
  • For use in a zone 1-IIC environment
  • Ex d IIA, IIB, IIC-T6, flame and dust proof
  • Ratings, Ex d, and Ex de for panel mounting (IECEx Rating: Ex d or de IIC T6 Gb)
480V Series in various colorways by Winchester Interconnect
CN series cable and cable connectors by Winchester Interconnect

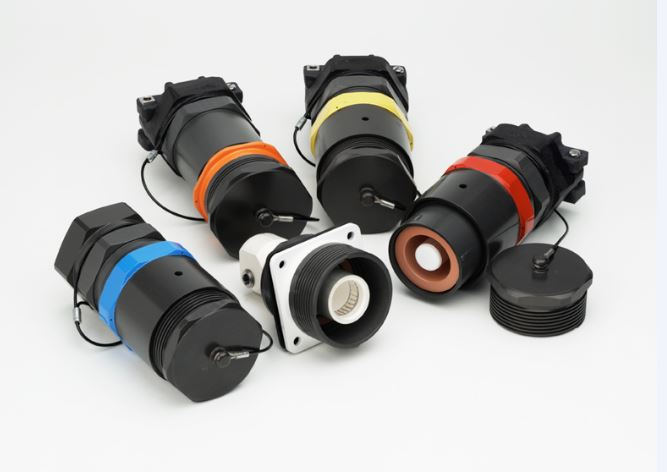

Single Pole Series by Winchester Interconnect
