Xtreme NetTM

Reliable Performance In Harsh Environments

Xtreme-Net® cables are designed to withstand extreme pressure in bottom-laid applications – up to 10,000 PSI.

TIA/EIA-568B Tested

Our cables have been tested and validated to meet industry Ethernet standard TIA/EIA-568B, with less than 2% change in values as tested to 6,000 PSI. They achieve data rates of 100Mbps Fast Ethernet, 270Mbps Digital video and up to 1000Mbps Gigabit Ethernet with length limitations.

Customized for Your Application

We offer a variety of standard and custom configurations such as armored versions using braided stainless steel or double served steel.

Cross section of Xtreme net cable made by Winchester Interconnect

Key Features

  • Unique design maintains high-speed Ethernet data transmission under extreme pressure in bottom-laid applications
  • Optional constructions with additional power conductors, shielding, synthetic strength layers, or steel armor available
  • Data rates of 100Mbps Fast Ethernet, 270Mbps Digital Video, and up to 1 Gigabit Ethernet can be achieved, as well as RS-485 and DSL rates
  •

Technical Specifications

  • Designs available to withstand pressures up to 10,000 PSI
  • Strength ratings up to 50K lbs
  • Shield: Aluminum/Braid
  • Diameter (inches): 0.364 in. – 0.640 in.
  • Diameter (mm): 8.8mm – 16.3mm
  • Data Rate: 100mb Cat5E – 1 Gig Cat6^
  • Number of Comp: 2C – 4C
  • Power Components: 2
Cross section of X-Marine cable made by Winchester Interconnect
Cross section of Xtreme light cable made by Winchester Interconnect

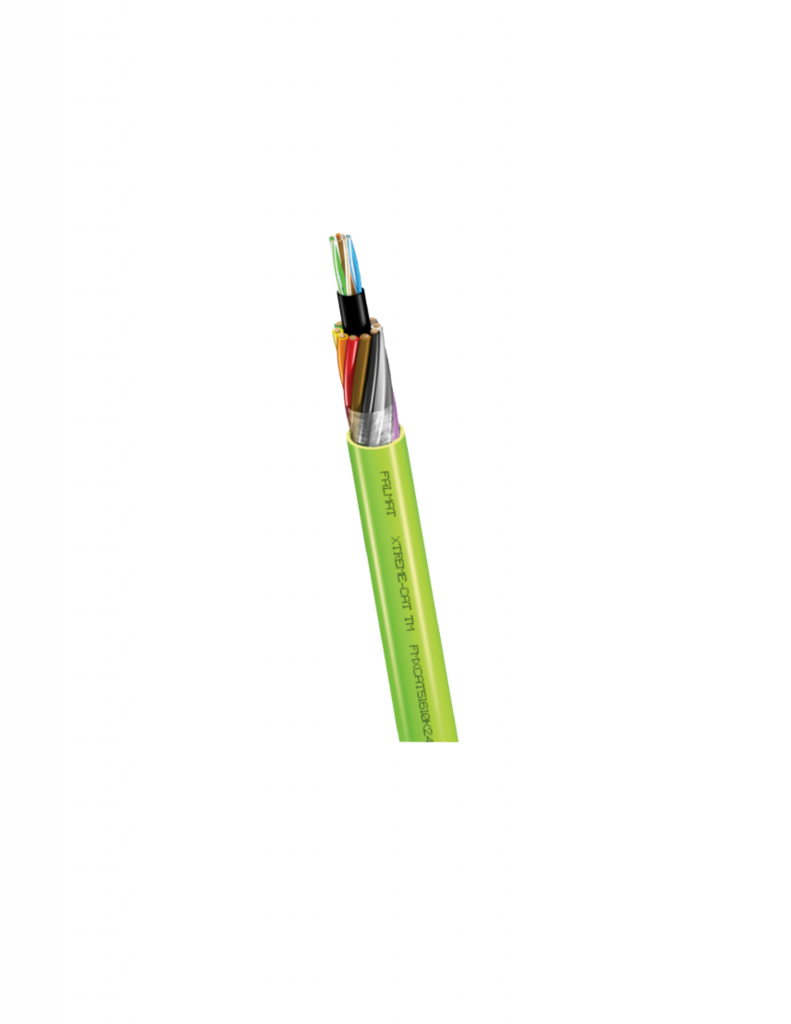

Cross section of Xtreme cat cable made by Winchester Interconnect
