ROV Tether and Umbilical Cable

Home » Wire and Cable » Undersea & Marine Cable » ROV Tether & Umbilicals

Reliable Performance In Xtreme Environments

Winchester’s team of cable designers work closely with our customers and their application requirements to provide the most reliable cable solutions for today’s high performance ROVs used in oil and gas exploration, defense, and a host of marine applications.

High Quality and Reliability

Winchester Interconnect manufactures a large range of ROV tether cables from small inspection handheld vehicles to large work class ROV’s in either neutral buoyant or negative style designs for various applications. We use specifically designed insulations, fiber-optic components, Kevlar, Vectran and specially formulated low density plastics to meet critical dimension controlled cable designs. Our cable designs are created for optimizing the mechanical, electrical and optical performance in demanding subsea projects.

Testing New Designs and Configurations

Winchester performs cable integrity test validation for each tether and umbilical. New design and test programs can be offered with extensive evaluation of cable strength layers such as ultimate break strength, bend cycling fatigue, low tension cycle fatigue, torque and rotation, hydrostatic, as well as all optical, electrical HiPot and third party certifications are available upon request.

Underwater ROV tether cable made by Winchester Interconnect attached to a large underwater camera
ROV Tether Thumbnail spec sheet

Key Features

  • Lightweight, Long-length, Free-swimming Tethers for Excursion
  • Rugged Deck Cables
  • ROV Mounted Cables for Video, Instrumentation, Control
    and Power
  • Heavy Lift Steel Umbilicals up to 180,000 lbs BS
  • Lightweight and Heavy Tethers for Tether Management
    Systems (TMS) to 80,000 lbs BS
  • Neutrally Buoyant Excursion Tethers for TMS and LARS

Technical Specifications

  • Break Strength: 200 – 35,000
  • Weight lb/mft Seawater: -32 – 326
  • Outer Diameter: 10.67mm – 49.53mm
  • Jacket Material: chosen for optimal bonding, moisture and mechanical resistance. Each ROV cable is uniquely designed for specific ROV types using PE, TPE, PUR, and foam variations for flotation.

Contact an undersea cable expert

Our team of engineers can help you create your next project

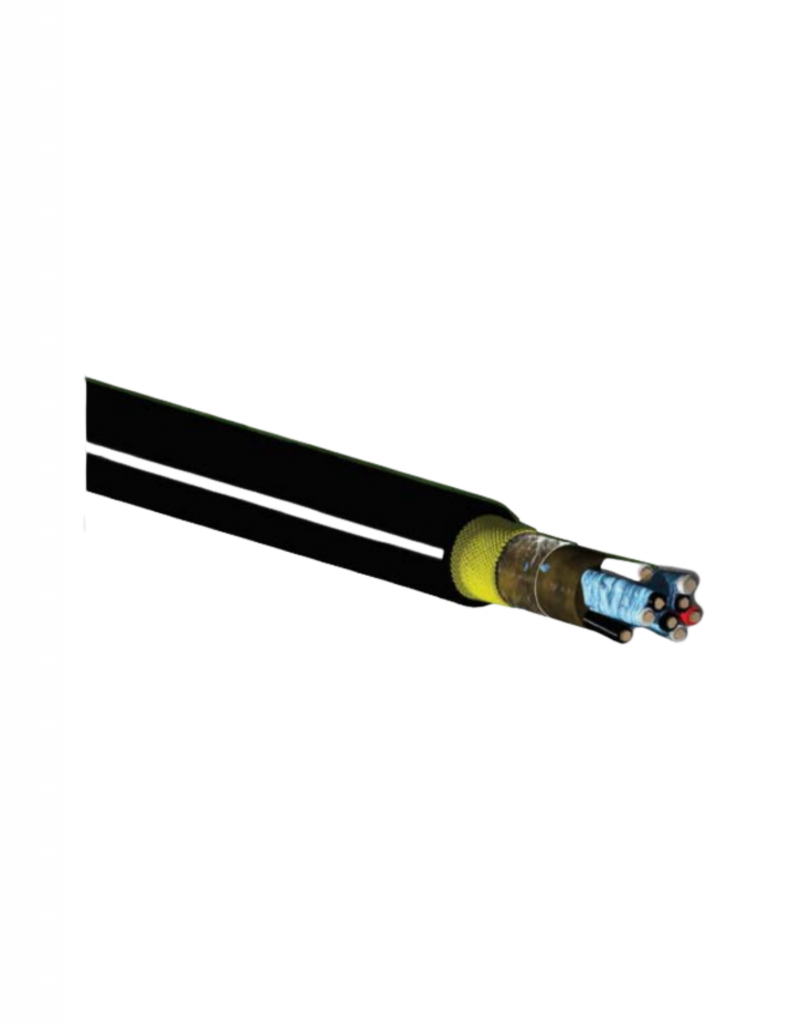

Cross section of cable made by Winchester Interconnect

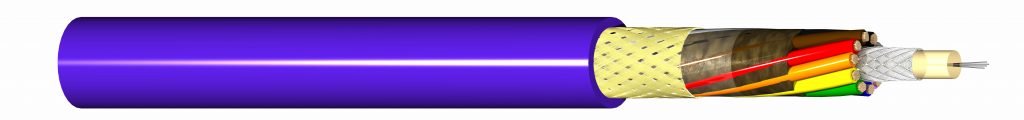

Cross section of X-Marine cable made by Winchester Interconnect
Cross section of Xtreme net cable made by Winchester Interconnect
